Kool Wrap Aluma Shield II Insulation, Aluminium and Fibreglass with adhesive backing, 5mm thick, 100cm x 58cm- H/D

Kool Wrap Aluma Shield II Adhesive Heat Shield – Heavy Duty (100cm x 58cm, 5mm)

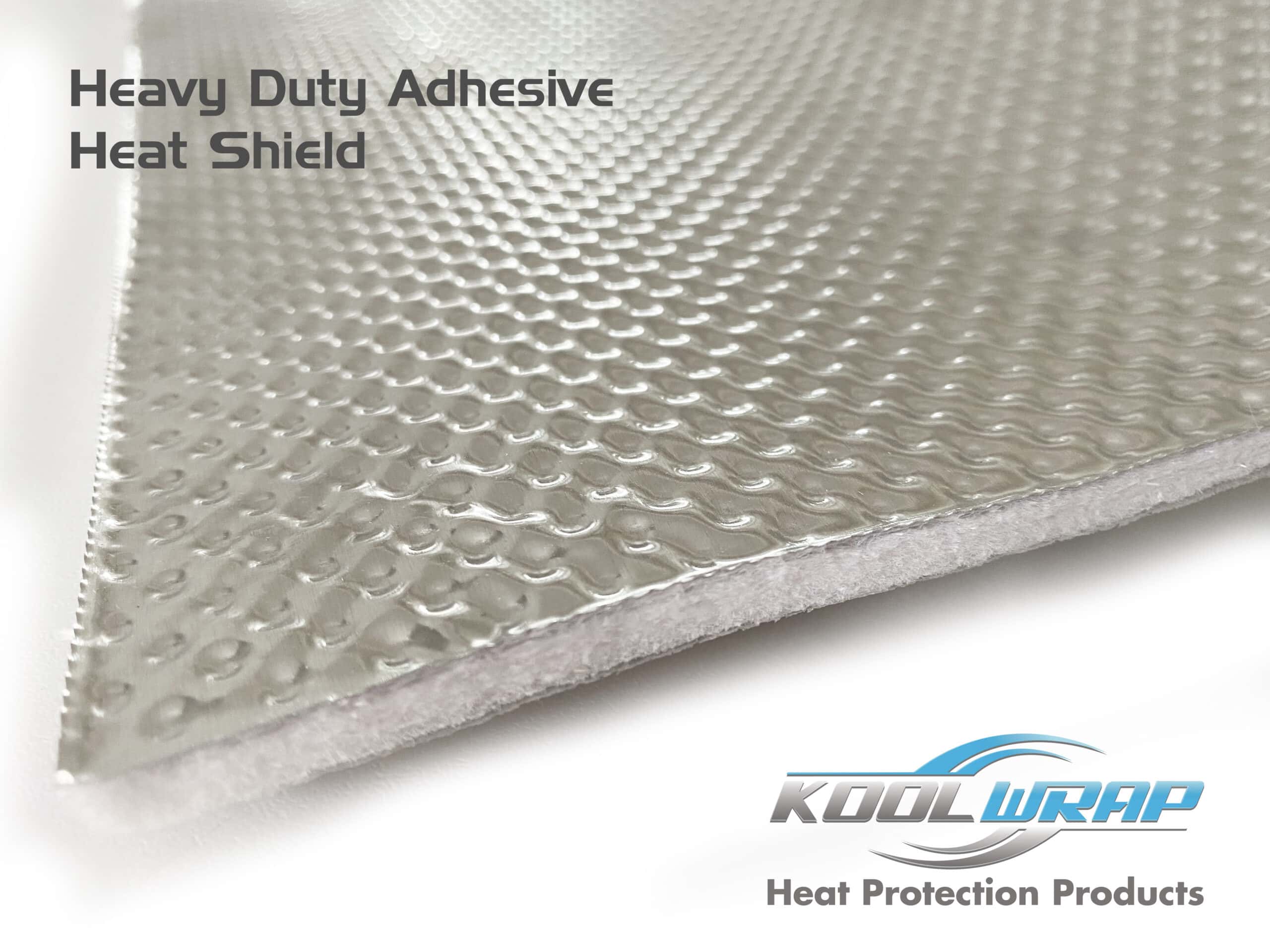

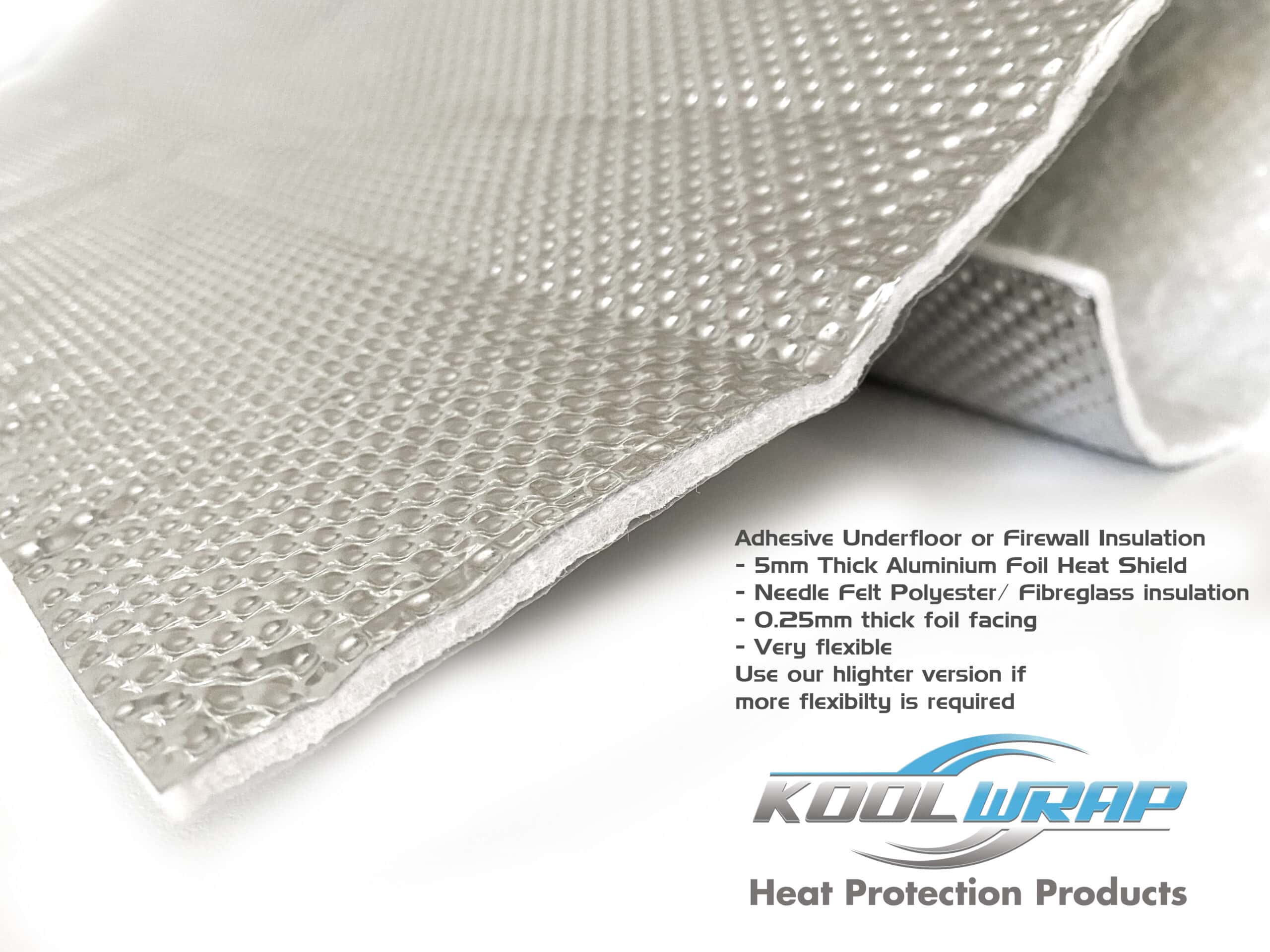

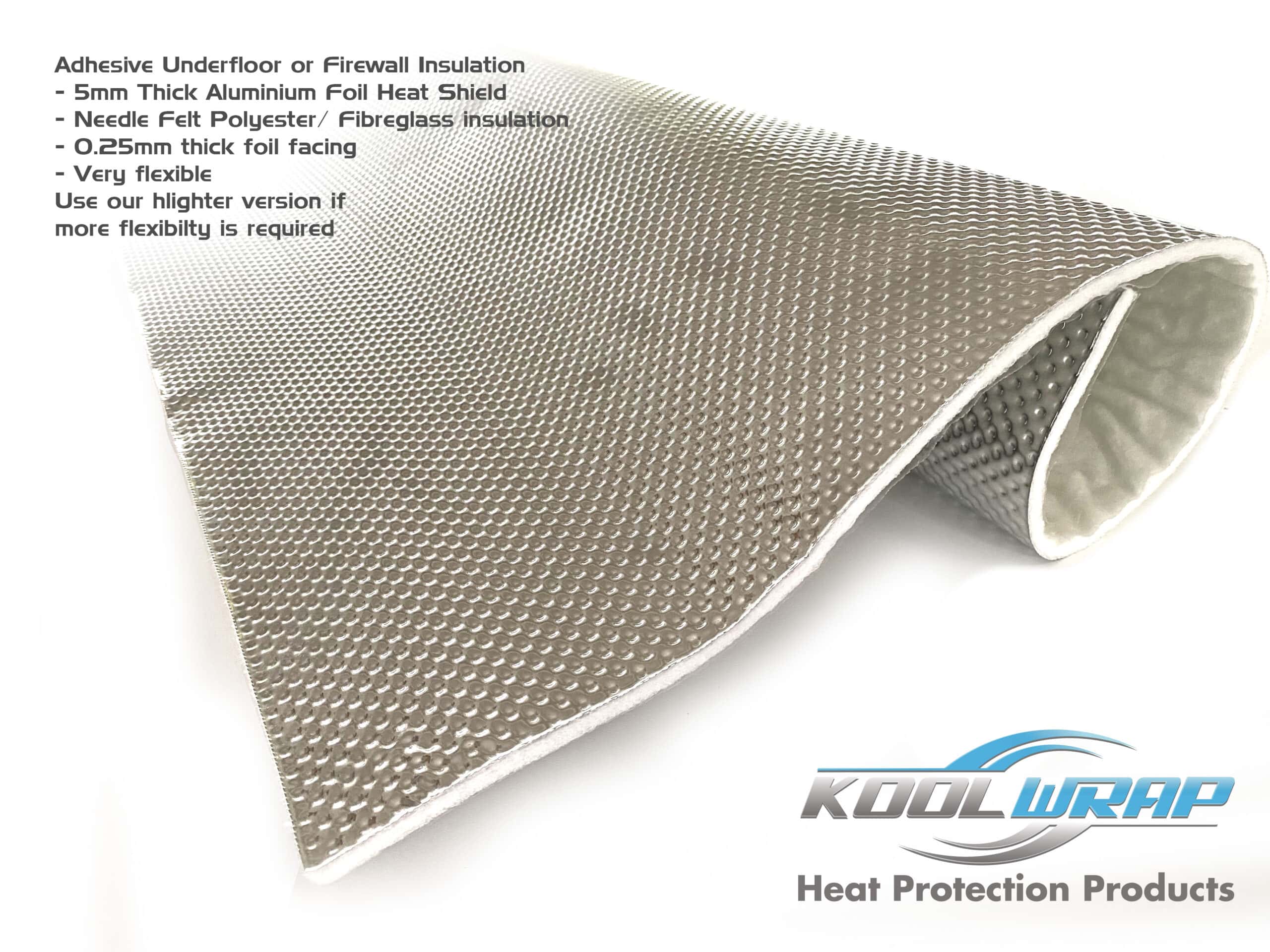

The Kool Wrap Aluma Shield II Heavy Duty Adhesive Heat Shield is a premium-grade insulation material, designed to deliver long-term heat protection in demanding environments. Constructed from a 0.25mm embossed aluminium top layer laminated to a needle-punched fibreglass and polyester core (5mm thick), this shield reflects up to 95% of radiant heat while blocking conductive heat transfer.

This heavy-duty version is tough enough for under-car use, floor pans, tunnel shields, and exhaust system protection, while still being easy to cut, mould, and install with its heat-resistant adhesive backing.

Key Features

• Heavy-duty aluminium foil (0.25mm) – strong, durable and heat-reflective

• 5mm fibreglass and polyester insulation backing – blocks heat transfer

• Reflects up to 95% of radiant heat

• Premium adhesive backing for permanent mounting

• Easy to cut and mould into shape

• Lightweight, strong, and designed for long-term use

• Tested for 30 hours at 246°C with no failure

• OEM-approved – used by leading automotive manufacturers

Applications

The Kool Wrap Aluma Shield II Heavy Duty Heat Shield is perfect for:

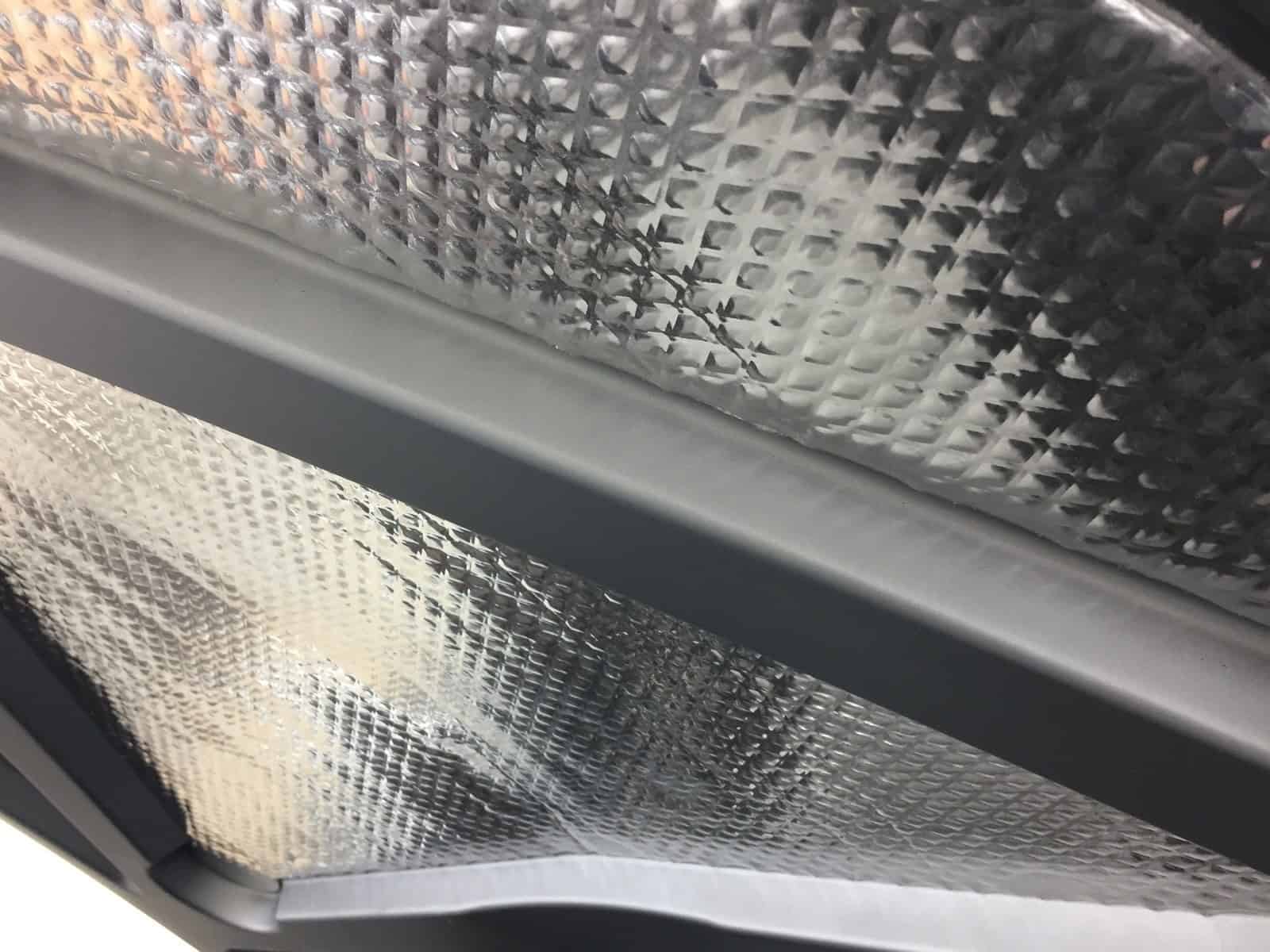

• Automotive: underfloor insulation, tunnel shields, fuel tank systems, transmissions, exhausts, steering components, firewall protection

• Industrial: heater enclosures, diesel heaters, ovens, fireplaces

• Marine: engine compartments and heat-sensitive areas

• Acoustic use: sound deadening without rattle or squeak

For applications requiring more flexibility on irregular surfaces (e.g., under bonnets, motorcycle fairings, air boxes, inner guards), see our Light Duty Aluma Shield II version with a thinner aluminium top layer.

Specifications

• Size: 100cm x 58cm (also available in 40cm x 50cm)

• Thickness: 5mm

• Aluminium Foil: 0.25mm embossed

• Insulation: Fibreglass and polyester core

• Heat Resistance: Continuous protection tested at 246°C

• Installation: Peel-and-stick pressure-sensitive adhesive backing

Why Choose Kool Wrap Aluma Shield II?

• Professional grade: approved by major OEMs

• Durable: will not separate or delaminate like cheaper products

• Versatile: suitable for interior and exterior applications

• Acoustic benefits: reduces vibration and sound transfer

• Easy installation: cut, peel, and stick in place

Order Now

Get the Kool Wrap Aluma Shield II Heavy Duty Adhesive Heat Shield (100cm x 58cm, 5mm thick) for reliable heat protection in automotive, industrial, and home applications.
